Nuragrid
Lightweight, strong, and easy-to-install grids
Design Versatility with Nuragrid

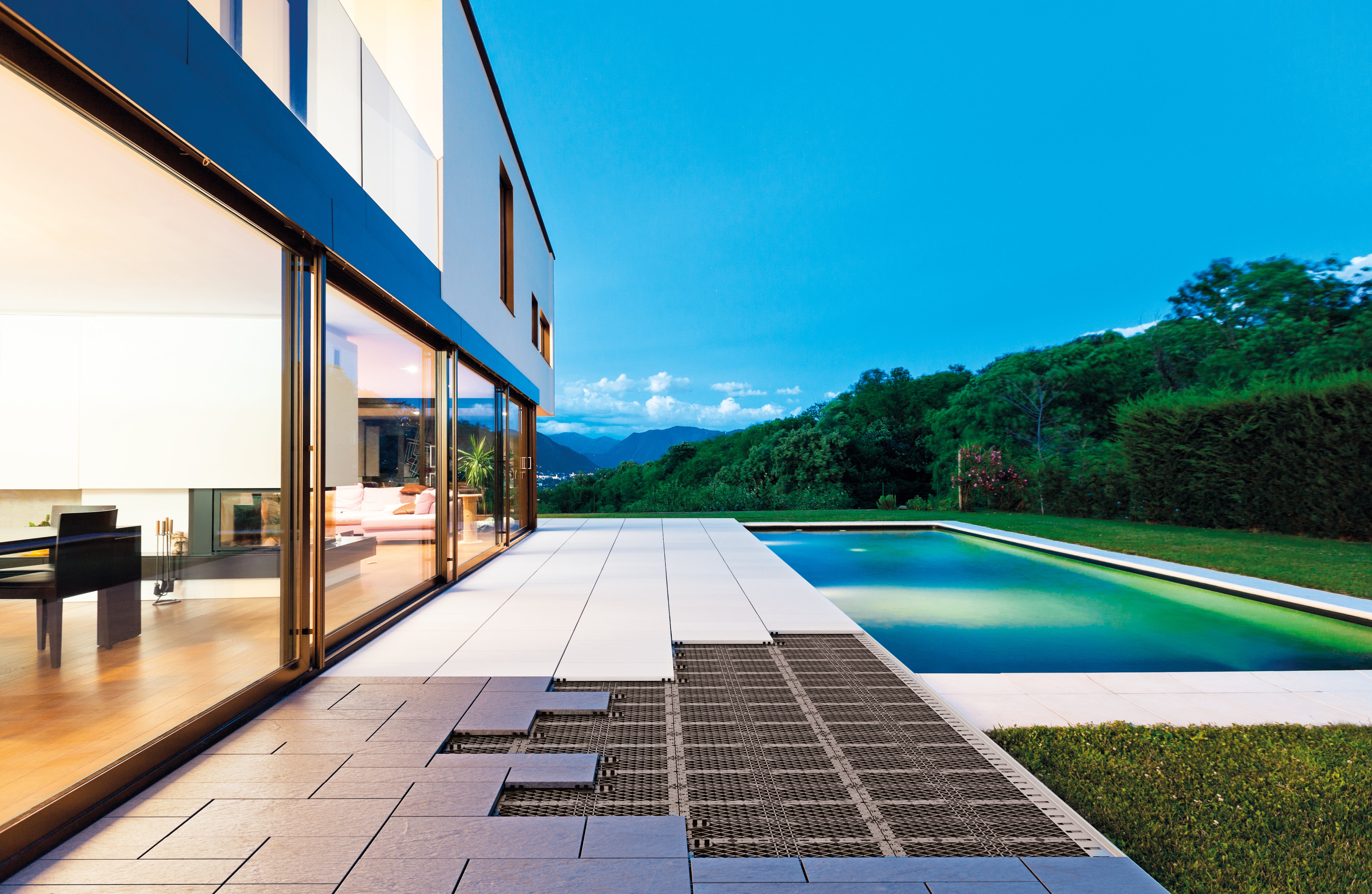

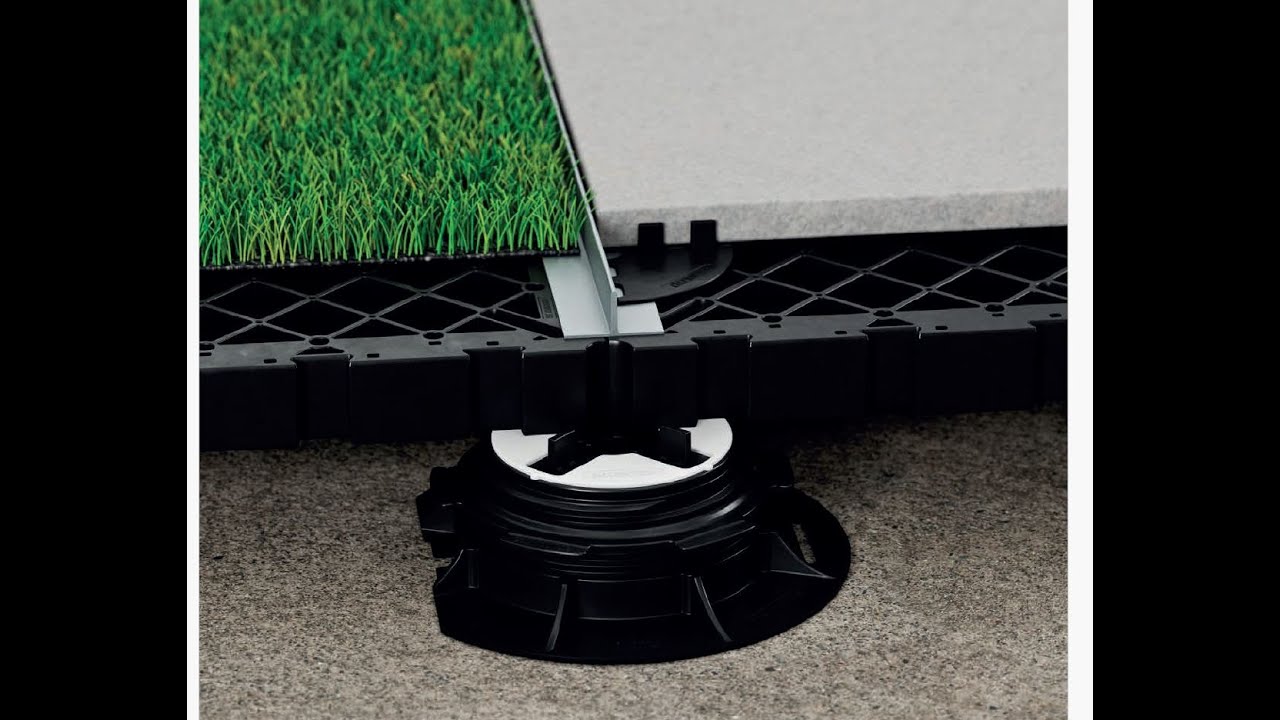

The greatest risk to a floated tile or paver deck is if a tile was to break. The Nuragrid offers a revolutionary approach to raised floated decking— providing unparalleled safety, design versatility, durability and ease of installation. This innovative safety grid system is suitable for large podium areas, public spaces, rooftop bars and even stylish backyards. It allows for the seamless integration of various flooring materials—such as pavers of different sizes and artificial turf—without sacrificing aesthetic appeal or structural integrity.
System Products

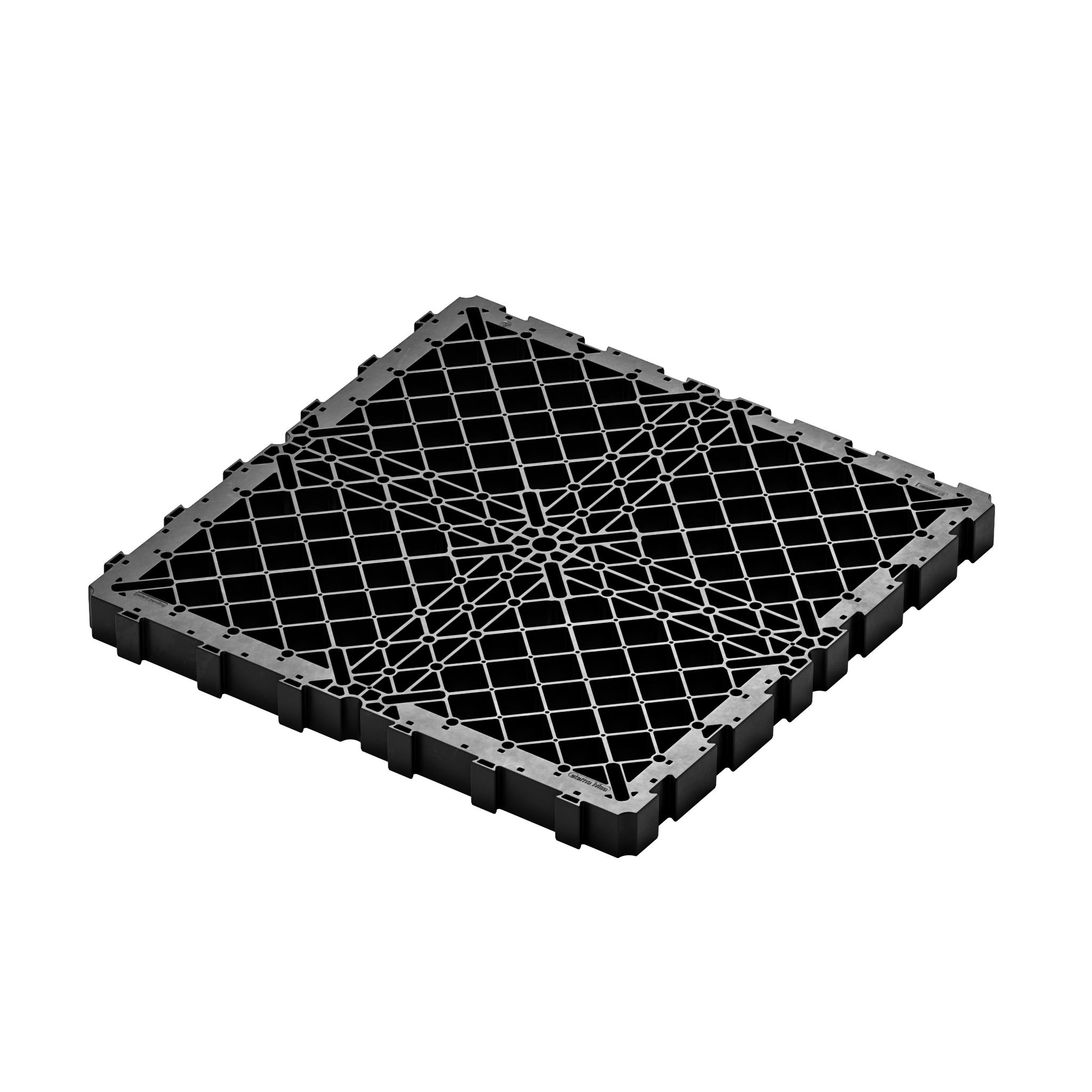

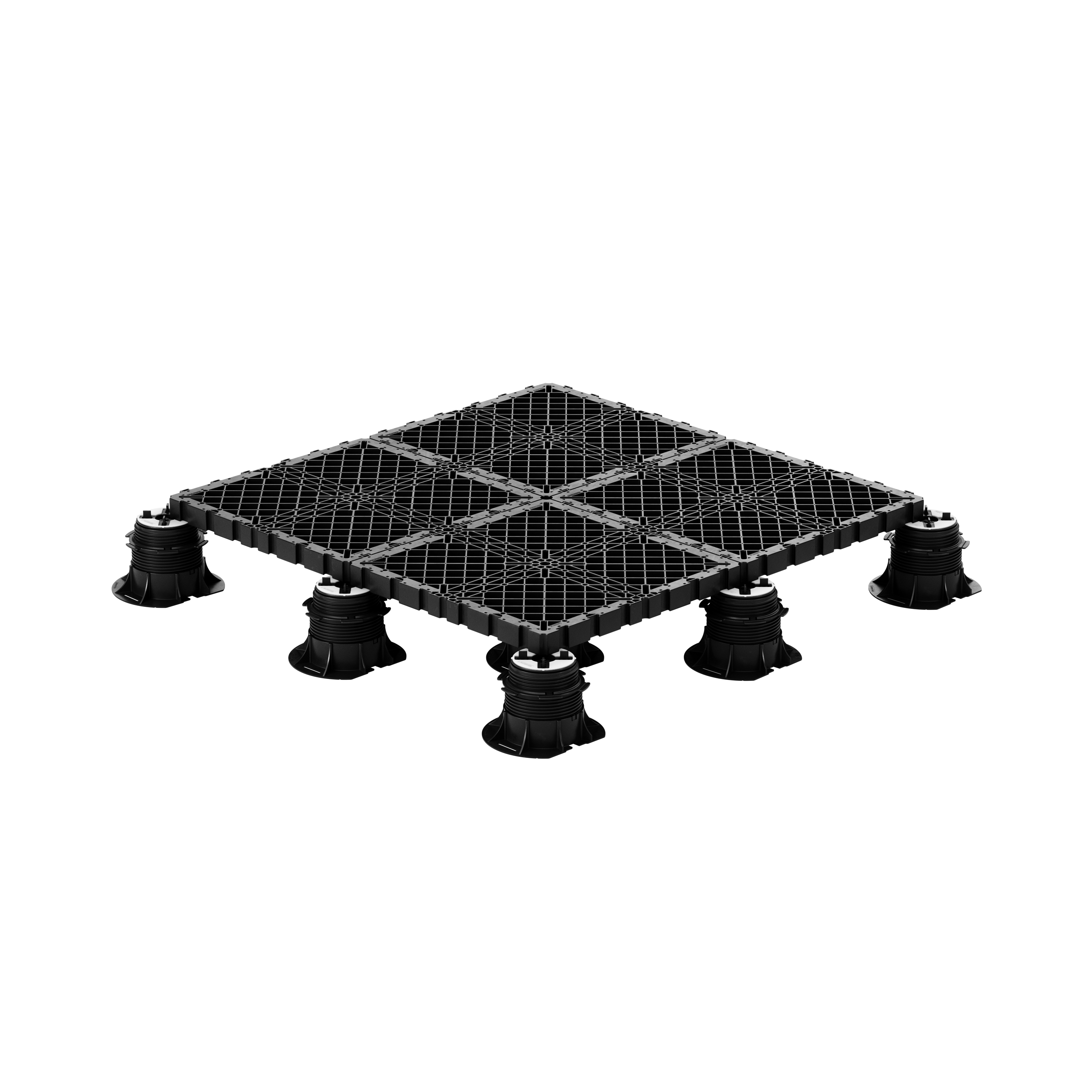

Nuragrid
Measuring 500 x 500mm by 40mm thick and made from a high percentage of recycled plastic, the Nuragrid supports floated or glued pavers/tiles and even turf.
The Nuragrid features dovetail joints to lock the grid together and is designed to be supported by the Nurajack pedestal system.

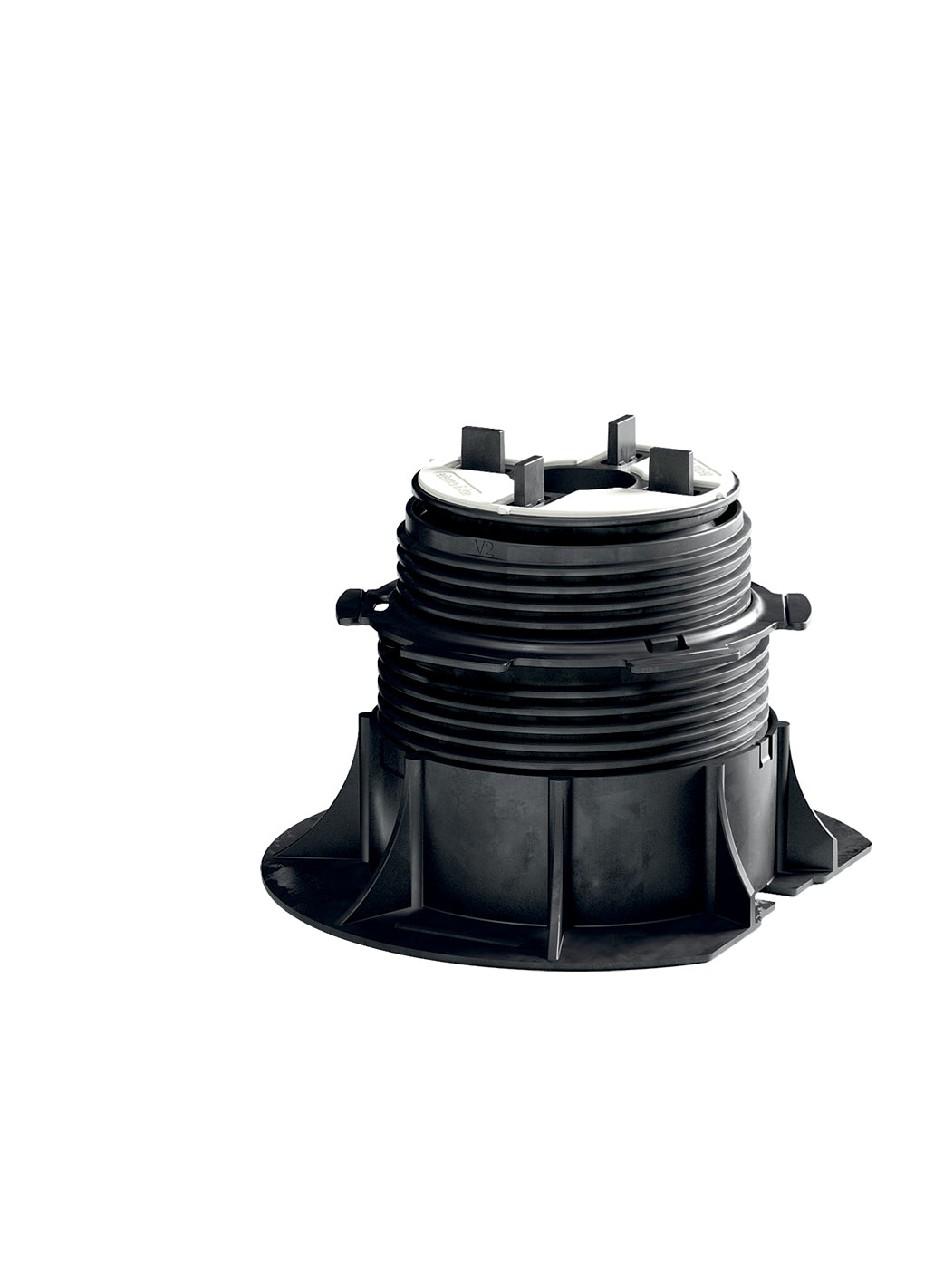

Nurajack PRO
Available in sizes from 30mm to 770mm, the adjustable Nurajacks incorporate a self-levelling head to protect membranes, making installation quick and easy.
The bi-component head minimises reflective echo and improves foot feel. The large 220mm diameter base distributes the load over any waterproofing, protecting the membrane from the load applied.

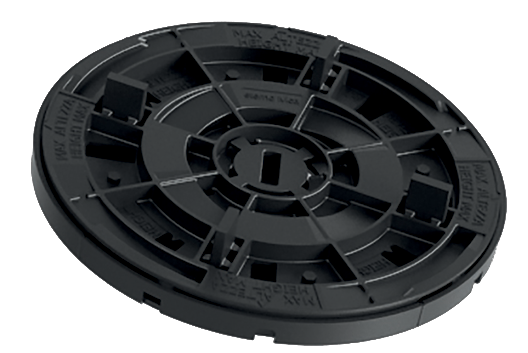

Nurajack Star.T
Starting at a height of 8mm, the Nurajack Star.T can be adjusted up to 15mm.
The Nurajack Star.T is 150mm in diameter and is levelled using a Star.T Slope Corrector.
Additional Star.B bases extend the height in 5mm increments - to a maximum of 30mm.
Nuragrid Tile Spacer
The Nuragrid Tile Spacer is a rubber 4mm spacer designed for loose-laid structural tiles on Nuragrid.
With a 1mm base, the spacers will separate opposing tiles by 4mm and can be broken into halves and quarters as required.
Accessories
A broad range of accessories are available, including vertical closures and perimeter spacers. The system can be installed in a wide variety of scenarios.
For wind uplift applications, click here.
Nuragrid Installation
FREEDOM OF CHOICE
The Nuragrid grants complete freedom in flooring selection. Mix and match different materials, patterns and sizes to create a truly personalised space.
DRY INSTALLATION
The Nuragrid typically is a dry installation process, ensuring raised and removable access to membranes and a clean and environmentally friendly installation.
ADHESIVE INSTALLATION
An adhesive system is available to ensure a firm and resilient surface. The adhesive option may allow for wind-proof, vandal-proof or non-structural paver applications (testing recommended).
LEVEL SURFACE
Due to the self-levelling heads of the Nurajacks, the system guarantees a perfectly level surface while still protecting membranes from point-loading.
EXCELLENT DRAINAGE
Like all Nurajack systems, it features drainage below the trafficable surface, ensuring a completely level surface and elimination of potential trip hazards.
SUSTAINABLE
All components of the Nurajack systems are made from a high percentage of recycled materials and are recyclable, aligning with sustainable building practices. Nurajack is part of Nuralite Group and has a target of zero carbon emissions.

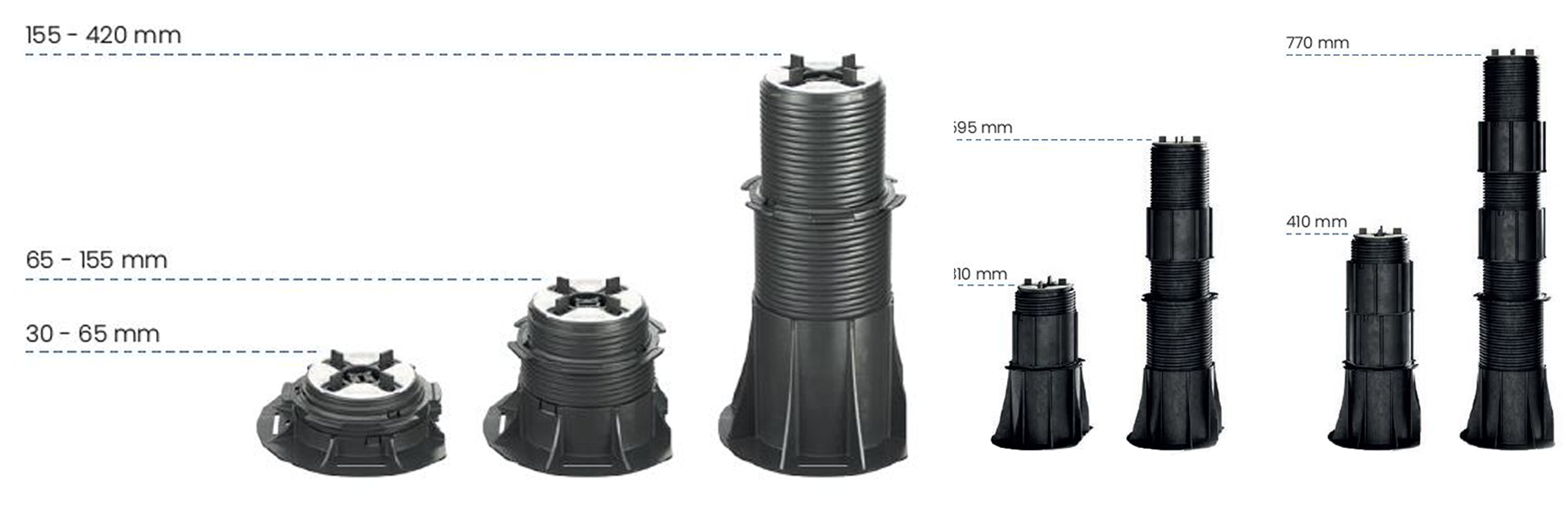

Nurajack Sizes
